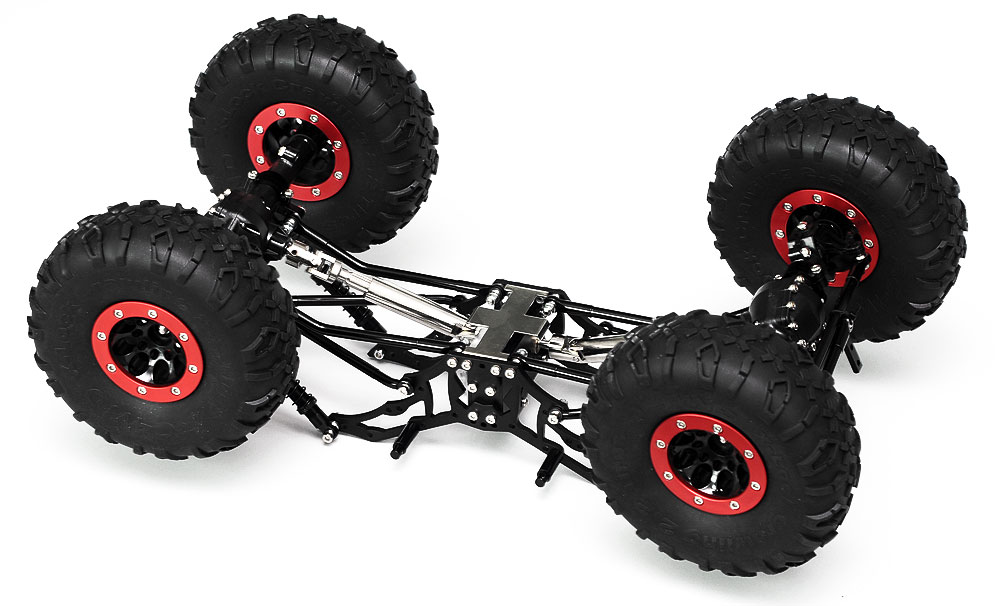

Diablo 1/10 Rock Crawler Prebuild ARTR

Diablo ARTR is factory built twin side plate crawler, all you need to do is add your choice of electronics and lexan body. Within few hours build-time you'll be able to hit the rocks!

Once you place your order, please allow 4-8 business days to process your order.

• Aluminum dual side plate chassis
• Scale T-Rex 60 plastic axle
• R2 Crawler transmission
• X-Lock 2.2 Tires (5.5" / 140mm tall)
• Dual spring aluminum shocks
• BL41 plastic beadlock wheels
• Meets all USRCCA required specs
• Steel Punisher universal shafts
• Full metal links
• Plastic rod ends
• Full ball bearings
• Length: 17.5", Width: 10", Height: 6", Wheelbase: 12.5", Ground clearance: 2.5"
• Suspension: 4 Link

Stainless steel skid plate:

Diablo with optional DMG upper chassis (not included):

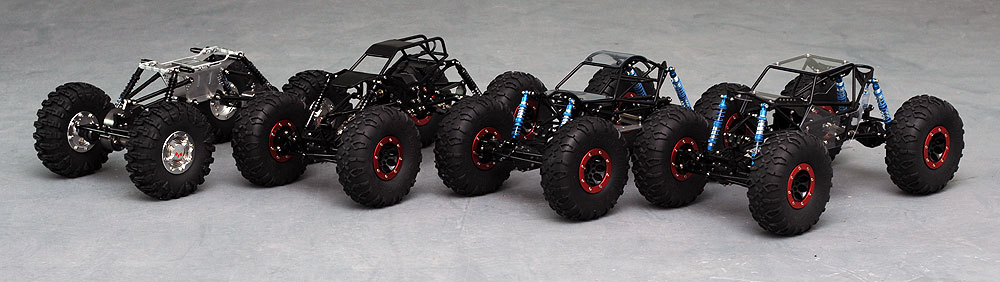

Here is a picture of RC4WD Crawler Lineup:

What's included:

• 1x RC4WD Diablo 1/10 Crawler Prebuild ARTR

Requires: 1x 540 motor (part # Z-E0004), 1x ESC (Z-E0007), 1x 2-channel Radio (Z-R0007), 1x servo (Z-E0012), 1x battery (search Battery) and 1x charger (search Charger).

Radio, ESC can be mounted on top of the tranny or on the rear 4 links plate.

This truck will require 1-2 hours of build time.

Instruction Manual:

Not available yet....

International customers (Non US)

If you plan to order this kit, make sure you choose EMS as shipping method.

Plastic parts

Only the axle, wheel, and rod ends on this crawler is made out of plastic, these parts are entry level parts. If you drive hard or plan to participate in competition please consider upgrade to alum axle, wheels, and rod ends.

Optional Upgrade

Click here to download the RC4WD Crawler Hopup List in PDF

Upgrade the axles to aluminum, Part # Z-A0050, Z-A0051

Optional Upper Tube Chassis:

DMG Diablo Chrome (Part # Z-C0012)
DMG Diablo Black (Part # Z-C0002)
