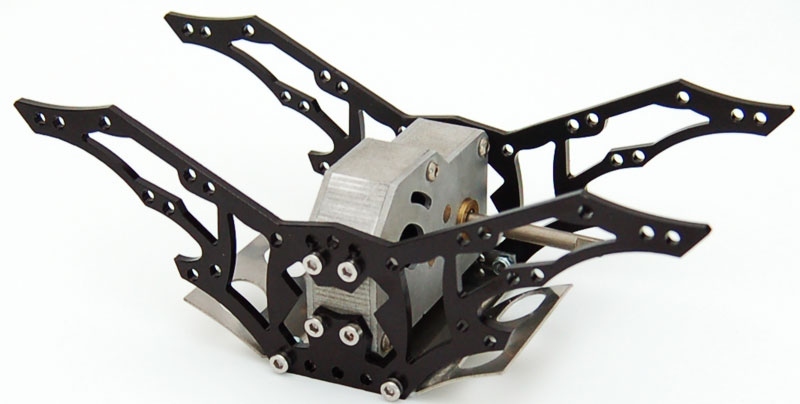

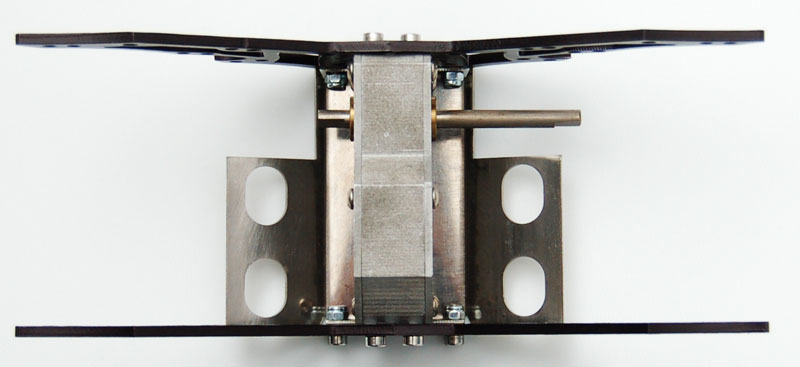

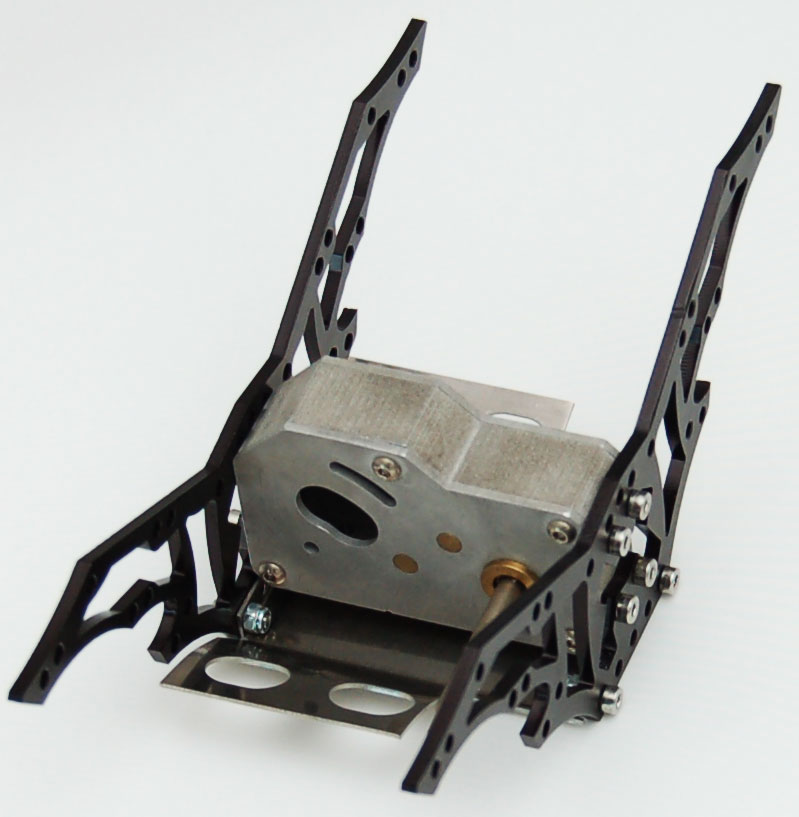

Diablo 2.2 Rock Crawling Chassis
Extremely compact chassis with direct support of R2 transmission!
- Direct fit R2 (X-0195, X-0209), R2 HD (X-0477, X-0478), R2 Disconnect (X-0361, X-0353, R2 2 Speed Tranny (X-0358)
- Dimensions are XX (Length)x XX (Height), XX (Width)
- Multiple shocks mounting position
- Fabricated by RC4WD USA

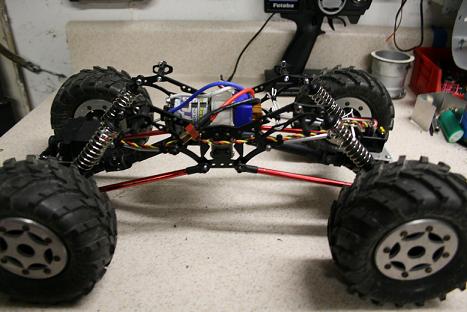

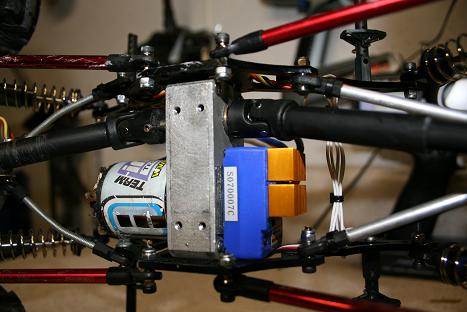

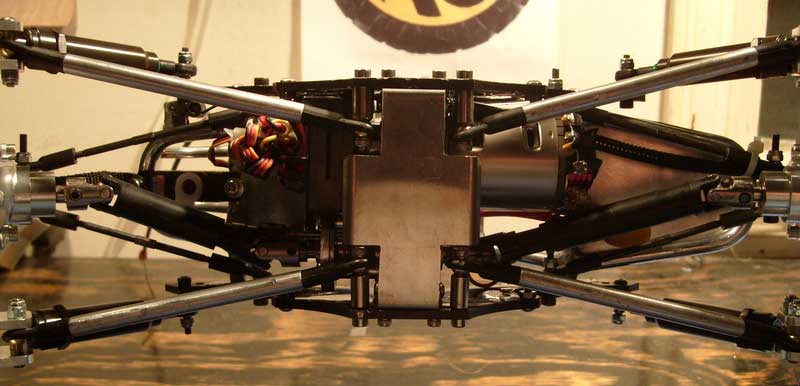

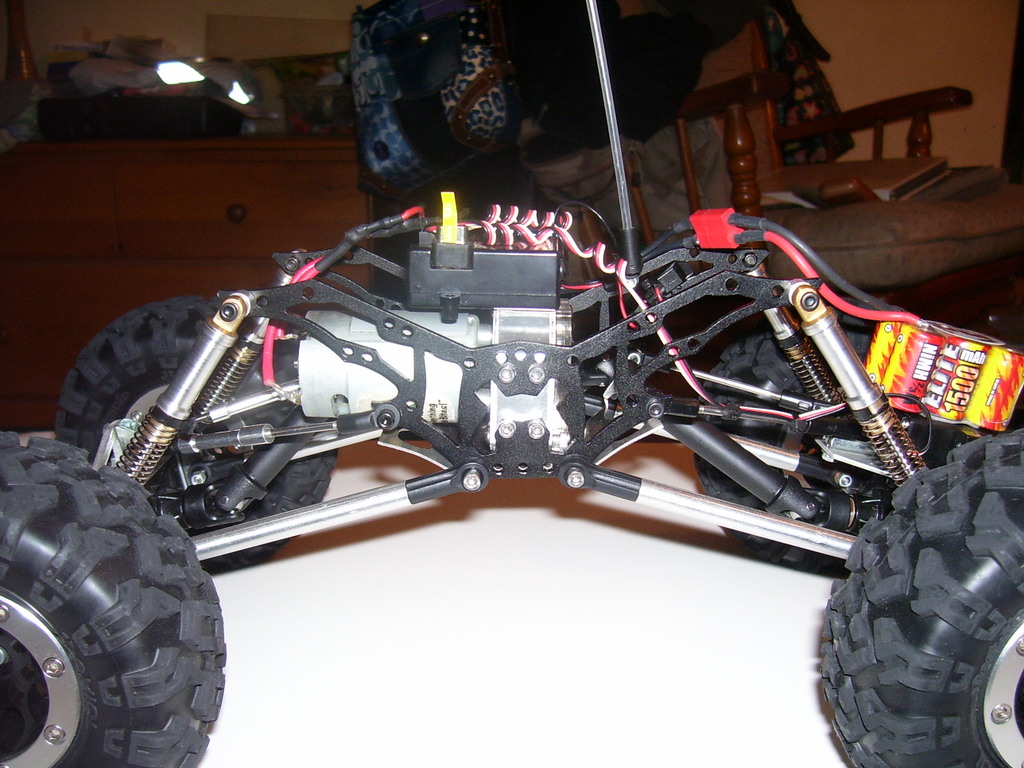

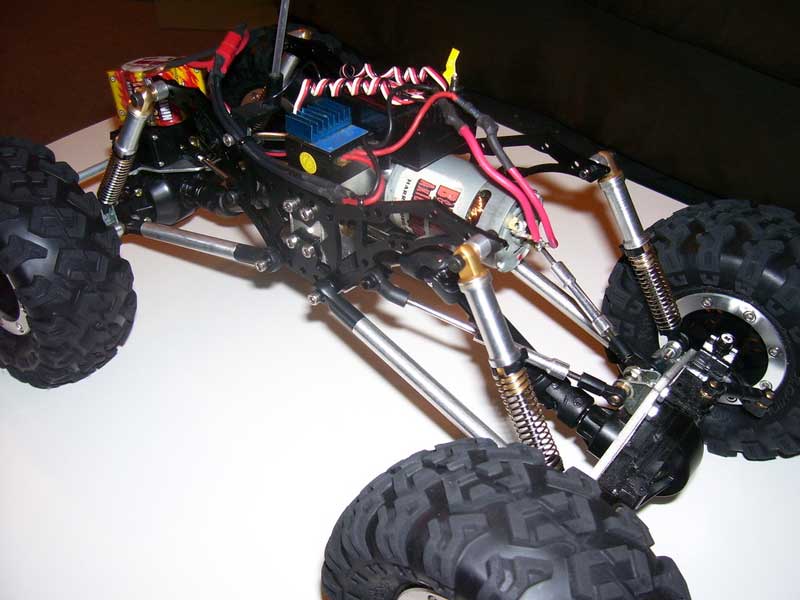

Below are pics of how our customer setup their rigs using Diable chassis:
What's included:
- 1x RC4WD Diablo 2.2 Chassis
- 4x Shock spacers
- 4x Body posts
- 1x Steel skid plate
Additional required parts for rolling chassis:
Axle - This chassis is designed to work with any 2.2, such as T-Rex, AX10, Wheely King, TLT-1, F-350 axles.
Shaft - Maxx shaft or Punisher Shaft (any one with 5mm hole)
Transmission - R2 (X-0195, X-0209), R2 HD (X-0477, X-0478), R2 Disconnect (X-0361, X-0353, R2 2 Speed Tranny (X-0358)
Suspension links - You can use 4x Traxxas Pushrod (5318x, 5319) or your own, depends on the wheel base you want to achieve
Shocks - Any shocks that are 100mm or longer
-------------------------------------------------------------
Note: This chassis is for experienced RC crawler builder
Note: Skid plate can be cutted for additional clearance
|
